Vertical Autoclave

• Chamber Size
• 400 - 600 mm

• Net Weight
• 78 Liters

• Outer Size
• 16 24 inches

• Power Consumption
• 4 kW

• Working Pressure
• 15-20 PSI

• Working Temperature
• 121-125C

• Chamber Size
• Standard or customizable (e.g., 400x600 mm and above)

• Chamber Thickness
• 6-12 mm Stainless Steel (304/316L)

• Compressed Air
• Required for operation, generally 6-8 bar

• Design Pressure
• 2.5 Bar to 3.0 Bar

• Design Temperature
• Up to 140C

• Door Type
• Radial Locking, Manual or Motorized Options

• Heat Uniform
• 1C throughout chamber

• Inner Trolley
• Provided for chamber handling

• Insulation
• High-grade Mineral Wool/Glass Wool

• Net Weight
• Varies by chamber size (approx. 300-1200 kg)

• Outer Size
• Customizable as per requirement

• Outer Trolley
• Provided for easy loading/unloading

• Piping System
• Stainless Steel with Interlocks

• Power Consumption
• 6-18 kW (depends on model size)

• Recording Parameters
• Digital/Chart Recorder for Temperature & Pressure

• Spraying Mode
• Uniform Water/Steam Distribution

• Spraying Piping
• Stainless Steel, corrosion-resistant

• Steam
• Saturated Steam Generation

• Sterilization Time
• Adjustable, 0-99 minutes

• Sterilizing Temperature
• Up to 135C

• Temperature Scope
• Ambient to 135C

• Type
• Other, Horizontal, Triple Walled, Cylindrical, High Pressure

• Valves
• Automatic/Manual Release, Pressure Safety Valves

• Working Pressure
• 2.1 Bar (approx. 30 psi)

• Working Temperature
• 121C-134C

• Chamber Size
• 250 450 mm

• Design Pressure
• 40 PSI

• Design Temperature
• 125C

• Door Type
• Radial locking manual lid

• Heat Uniform
• Uniform, triple wall insulation

• Insulation
• Triple walled structure

• Outer Size
• 10 18 inches

• Power Consumption
• 1.5 kW

• Steam
• Electric steam generation

• Sterilizing Temperature
• 121-125C

• Temperature Scope
• 121-125C

• Type
• Other, Vertical autoclave triple walled

• Valves
• Multiple, stainless steel

• Working Pressure
• 15-20 PSI

• Working Temperature
• 121-125C

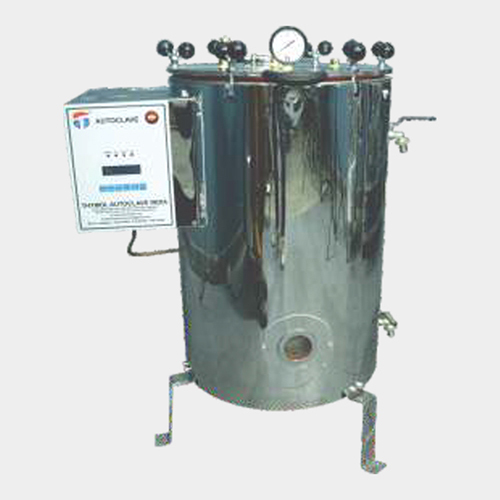

• Chamber Size
• 250 450 mm

• Chamber Thickness
• High-Grade Stainless Steel

• Design Pressure
• 40 PSI

• Design Temperature
• 125C

• Door Type
• Wingnut lid

• Heat Uniform
• Uniform steam distribution

• Insulation
• Double-walled Stainless Steel

• Outer Size
• 10 18 inches

• Piping System
• Double-walled piping

• Power Consumption
• 1.5 kW

• Recording Parameters
• Manual Gauge Display

• Steam
• Electrical Steam Generation

• Sterilizing Temperature
• 121-125C

• Temperature Scope
• 121-125C

• Type
• Other, Vertical Autoclave, Double Walled

• Valves
• Pressure release valves

• Working Pressure
• 15-20 PSI

• Working Temperature
• 121-125C

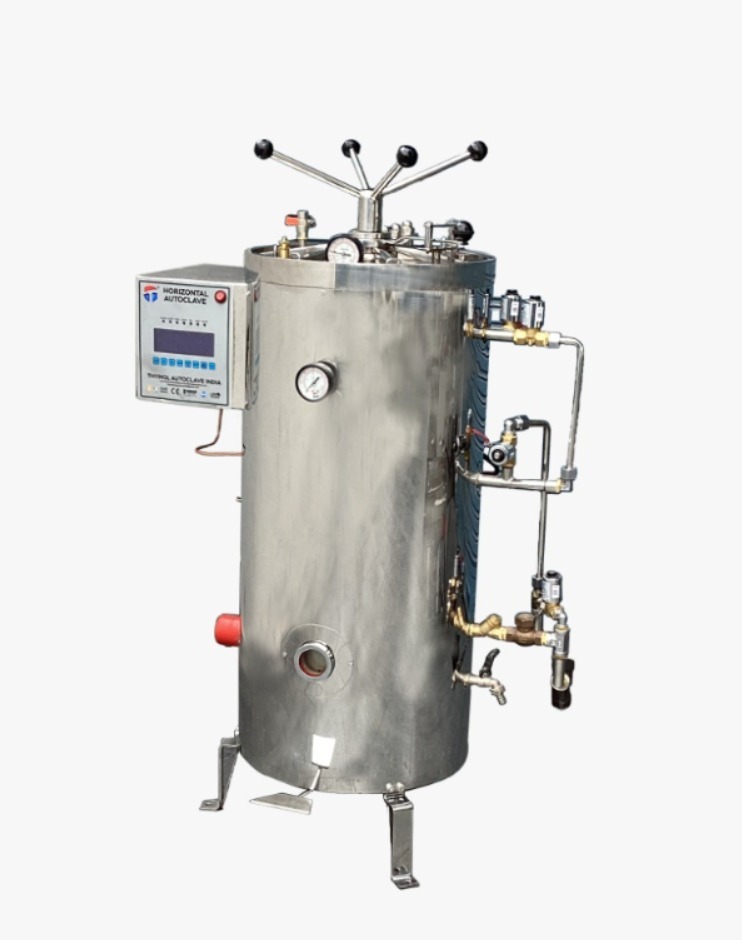

• Chamber Size
• 350 mm x 550 mm, others on request

• Chamber Thickness
• 3.0 mm (minimum) stainless steel

• Compressed Air
• Not required, operates on electric and steam supply

• Design Pressure
• 2.5 kg/cm2

• Design Temperature
• 134C max

• Door Type
• Radial lock, wingnut type lid

• Heat Uniform
• 1C

• Inner Trolley
• Perforated stainless steel basket included

• Insulation
• Triple walled with mineral wool insulation

• Net Weight
• ~90 kg (varies with size)

• Outer Size
• 430 mm x 640 mm (Standard), Custom sizes available

• Outer Trolley
• Optional stainless steel removable trolley

• Piping System
• Stainless steel pipeline system with pressure gauge

• Power Consumption
• 3 kW to 6 kW (model dependent)

• Recording Parameters
• Digital display and manual record

• Spraying Mode
• Uniform spraying, 360 coverage

• Spraying Piping
• Built-in stainless steel spraying jets

• Steam
• Electric steam generation

• Sterilization Time
• 15-30 minutes (adjustable)

• Sterilizing Temperature
• 121C (Standard)

• Temperature Scope
• Ambient to 134C

• Type
• Other, Vertical triple-walled autoclave

• Valves
• Safety valve, release valve, steam trap

• Working Pressure
• 1.2 kg/cm2 to 1.5 kg/cm2

• Working Temperature
• 121C to 134C
