Horizontal Autoclave

Discover the strength and durability of our Horizontal Autoclave, designed for immaculate sterilization processes and perfect results in laboratories, research institutes, and industrial applications. As a prime manufacturer, exporter, supplier, and distributor with over 13 years of experience, we offer top-rated models such as the TAI-906(B) Fully Automatic Horizontal Rectangular Square Body Autoclave, the TAI-907(A) Horizontal Rectangular Outer Square Body, and the TAI-906 Horizontal Cylindrical Triple Walled High Pressure Autoclave Fully Stainless Steel, along with newly released variants like the Horizontal Cylindrical Triple Walled High Pressure Autoclave With Outer Square Body and the Horizontal Rectangular High Pressure Autoclave. These autoclaves stand out for their unmatched pressure retention, stellar temperature uniformity, robust stainless steel construction, advanced safety mechanisms, and user-friendly fully automatic operations. Instant savings on energy consumption and maintenance costs make them the best choice for high-volume usage, and their reliability ensures consistent performance across various industries. With all-India supply ability, trust our horizontal autoclaves for supreme performance, making your sterilization applications easy, safe, and cost-effective.

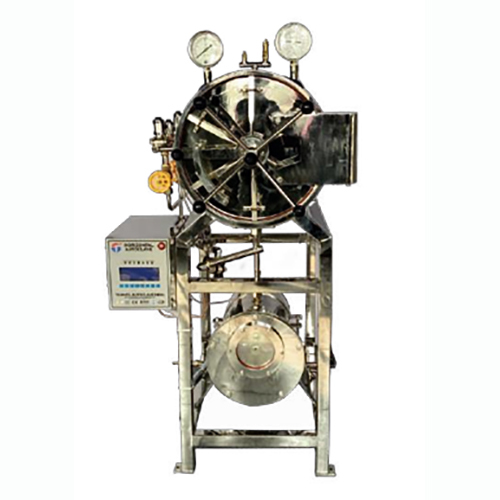

TAI-906 Horizontal Cylindrical Triple Walled High Pressure Autoclave Fully Stainless Steel

MOQ : 1 Unit

  • Chamber Size
  • 450 600 900 mm
  • Design Pressure
  • 2.1 kgf/cm2 (60 PSI)
  • Outer Size
  • 18 24 36 inches
  • Power Consumption
  • 18 kW
  • Sterilizing Temperature
  • 121C
  • Type
  • Other, Horizontal Cylindrical Triple Walled High Pressure Autoclave
  • Valves
  • Manual exhaust valve
  • Working Pressure
  • 15-35 PSI
  • Working Temperature
  • 121C

Horizontal Rectangular High Pressure Autoclave

MOQ : 1 Unit

  • Chamber Size
  • 600 x 600 x 1200 mm / As per customized requirements
  • Chamber Thickness
  • 6 to 10 mm, high grade stainless steel
  • Compressed Air
  • 6-8 Bar (Required for pneumatic valves)
  • Design Pressure
  • Up to 2.5 Bar
  • Design Temperature
  • Up to 140C
  • Door Type
  • Radial locking, manual/automatic
  • Heat Uniform
  • 1C (chamber center)
  • Inner Trolley
  • Stainless Steel Perforated Trolley Optional
  • Insulation
  • High density mineral wool/ceramic fiber
  • Net Weight
  • Approx 450-1000 kg (depending on size)
  • Outer Size
  • Customizable as per requirements
  • Outer Trolley
  • Detachable Stainless Steel
  • Piping System
  • Stainless Steel seamless pipes and fittings
  • Power Consumption
  • 6 kW to 18 kW (Based on chamber size)
  • Recording Parameters
  • Digital temperature and pressure recorder/chart recorder
  • Spraying Mode
  • Uniform spraying (if applicable for liquid loads)
  • Spraying Piping
  • Stainless Steel, corrosion resistant
  • Steam
  • Saturated steam generator/External steam supply
  • Sterilization Time
  • 0-99 Minutes (Programmable)
  • Sterilizing Temperature
  • 121C to 134C
  • Temperature Scope
  • Ambient to 134C
  • Type
  • Other, Horizontal Rectangular High Pressure Autoclave
  • Valves
  • ISI marked safety and control valves
  • Working Pressure
  • 1.2 to 2.2 Bar
  • Working Temperature
  • Up to 134C

TAI-906(B) Fully Automatic Horizontal Square Body Autoclave

MOQ : 1 Unit

  • Chamber Size
  • 400 600 mm
  • Door Type
  • Horizontal Rectangular Square Body
  • Outer Size
  • 16 24 inches
  • Power Consumption
  • 6 kW
  • Sterilizing Temperature
  • 121C-134C
  • Type
  • Other, Fully Automatic Horizontal Autoclave
  • Valves
  • Exhaust Valve Manual
  • Working Pressure
  • 15-35 PSI
  • Working Temperature
  • 121C-134C

Sliding Door Autoclave

MOQ : 1 Unit

  • Chamber Size
  • 180 Liters
  • Door Type
  • Sliding door
  • Outer Size
  • 450 450 900 mm
  • Power Consumption
  • 18 kW
  • Type
  • Other, Sliding Door Autoclave

TAI-907(A) Horizontal Rectangular Outer Square Body

MOQ : 1 Unit

  • Chamber Size
  • 180 Liters
  • Outer Size
  • 450 450 900 mm (18 18 36 inches)
  • Power Consumption
  • 12 kW
  • Working Pressure
  • 15-35 PSI
