Horizontal Rectangular High Pressure Autoclave
Horizontal Rectangular High Pressure Autoclave

Horizontal Rectangular High Pressure Autoclave

MOQ : 1 Unit

Horizontal Rectangular High Pressure Autoclave Specification

  • Type
  • Horizontal Rectangular High Pressure Autoclave
  • Chamber Size
  • 600 x 600 x 1200 mm / As per customized requirements
  • Chamber Thickness
  • 6 to 10 mm, high grade stainless steel
  • Outer Size
  • Customizable as per requirements
  • Compressed Air
  • 6-8 Bar (Required for pneumatic valves)
  • Door Type
  • Radial locking, manual/automatic
  • Design Pressure
  • Up to 2.5 Bar
  • Working Pressure
  • 1.2 to 2.2 Bar
  • Design Temperature
  • Up to 140C
  • Heat Uniform
  • 1C (chamber center)
  • Insulation
  • High density mineral wool/ceramic fiber
  • Net Weight
  • Approx 450-1000 kg (depending on size)
  • Recording Parameters
  • Digital temperature and pressure recorder/chart recorder
  • Spraying Mode
  • Uniform spraying (if applicable for liquid loads)
  • Outer Trolley
  • Detachable Stainless Steel
  • Inner Trolley
  • Stainless Steel Perforated Trolley Optional
  • Spraying Piping
  • Stainless Steel, corrosion resistant
  • Steam
  • Saturated steam generator/External steam supply
  • Sterilizing Temperature
  • 121C to 134C
  • Working Temperature
  • Up to 134C
  • Sterilization Time
  • 0-99 Minutes (Programmable)
  • Temperature Scope
  • Ambient to 134C
  • Piping System
  • Stainless Steel seamless pipes and fittings
  • Valves
  • ISI marked safety and control valves
  • Power Consumption
  • 6 kW to 18 kW (Based on chamber size)
  • Noise Level
  • <72 dB(A) at 1 meter distance
  • Display
  • Digital touch screen/HMI with real-time monitoring
  • Cycle Modes
  • Solid, liquid, waste, pre-vacuum, and custom cycles
  • Electrical Requirements
  • 415 V, 3 Phase, 50/60 Hz
  • Application
  • Hospitals, research, pharmaceutical, and laboratory sterilization
  • Testing Standards
  • Conforms to ISO and GMP guidelines
  • Surface Finish
  • Polished stainless steel, matt/brushed finish
  • Accessories
  • Steam generator, trays, racks, and baskets supplied
  • Gasket Material
  • Silicone/Neoprene heat proof rubber
  • Chamber Material
  • SS 304/SS 316 as per client demand
  • Mounting
  • Floor standing, skid mounted frame
  • Control System
  • Microprocessor based programmable logic controller (PLC)
  • Safety Features
  • Door interlock, pressure protection, overtemperature cut-off
  • Drainage System
  • Automated condensate drain


Horizontal Rectangular High Pressure Autoclave Trade Information

  • Minimum Order Quantity
  • 1 Unit
  • Supply Ability
  • 100 Units Per Month
  • Delivery Time
  • 5-7 Days


About Horizontal Rectangular High Pressure Autoclave



Experience unmatchable sterilization performance with our Exclusive Horizontal Rectangular High Pressure Autoclave, celebrated for its reliability in hospitals, research, and pharmaceutical settings. Engineered from premium SS 304/SS 316 as per client demand, and managed via a superb microprocessor-based PLC, this new release guarantees utmost safety with door interlock, pressure protection, and overtemperature cut-off. The polished or matt stainless steel finish exudes class, and instant checkout ensures quick acquisition. Enjoy programmable cycle modes, digital HMI display, and premium accessories for enhanced productivity. Conforms to stringent ISO and GMP guidelines.

Versatile Sterilization for Professionals

Widely used by hospitals, laboratories, pharmaceutical companies, and research institutes, the Horizontal Rectangular High Pressure Autoclave is ideal for the sterilization of surgical tools, laboratory glassware, media, and waste. The process involves loading items onto supplied racks, selecting the intended cycle (solid, liquid, waste, pre-vacuum, or custom), and activating the programmable system via the digital touch screen for reliable, uniform sterilization every time.


Seamless Shipping and Comprehensive Sample Policy

Delivered promptly from our main FOB ports across India, this autoclave is supplied with robust packaging and optional drop-off services. We accommodate customer sampling policies to ensure confidence prior to purchase. With a vast export market spanning Asia, Africa, and the Middle East, clients can expect efficient supply and exemplary trade support, making us their preferred global partner for high-performance sterilization solutions.


FAQ's of Horizontal Rectangular High Pressure Autoclave:


Q: How does the microprocessor-based PLC enhance the autoclave's operation?

A: The microprocessor-based programmable logic controller (PLC) ensures accurate, programmable control of sterilization cycles, real-time monitoring, and precise temperature and pressure settings for consistent and effective sterilization.

Q: What safety features are included in the autoclave's design?

A: This autoclave incorporates advanced safety mechanisms such as a door interlock system, pressure protection, overtemperature cut-off, and ISI-marked safety valves to maximize operator and equipment safety during operation.

Q: Where can the Horizontal Rectangular High Pressure Autoclave be installed?

A: It is designed for versatile floor mounting on a skid-mounted frame, suitable for installation in hospitals, pharmaceutical factories, research centers, and laboratories, with customizable chamber and external sizes based on facility requirements.

Q: What is the process for sterilizing liquid and solid loads using this autoclave?

A: Users simply place items on the provided stainless steel racks, choose the specific cycle (liquid, solid, etc.) using the digital touch screen, and the autoclave uniformly sterilizes loads with automated drainage and programmable cycle management.

Q: What are the primary benefits of using this autoclave in professional environments?

A: It offers rapid, superb sterilization with multiple programmable modes, highly accurate records of parameters, ease of use via digital controls, and compliance with ISO and GMP standards, ensuring safety and reproducibility for sensitive applications.

Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Horizontal Autoclave Category

TAI-906 Horizontal Cylindrical Triple Walled High Pressure Autoclave Fully Stainless Steel

TAI-906 Horizontal Cylindrical Triple Walled High Pressure Autoclave Fully Stainless Steel

Minimum Order Quantity : 1 Unit

Chamber Size : 450 600 900 mm

Power Consumption : 18 kW

Outer Size : 18 24 36 inches

Type : Other, Horizontal Cylindrical Triple Walled High Pressure Autoclave

Working Pressure : 1535 PSI

TAI-906(B) Fully Automatic Horizontal Square Body Autoclave

TAI-906(B) Fully Automatic Horizontal Square Body Autoclave

Minimum Order Quantity : 1 Unit

Chamber Size : 400 600 mm

Power Consumption : 6 kW

Outer Size : 16 24 inches

Type : Other, Fully Automatic Horizontal Autoclave

Working Pressure : 1535 PSI

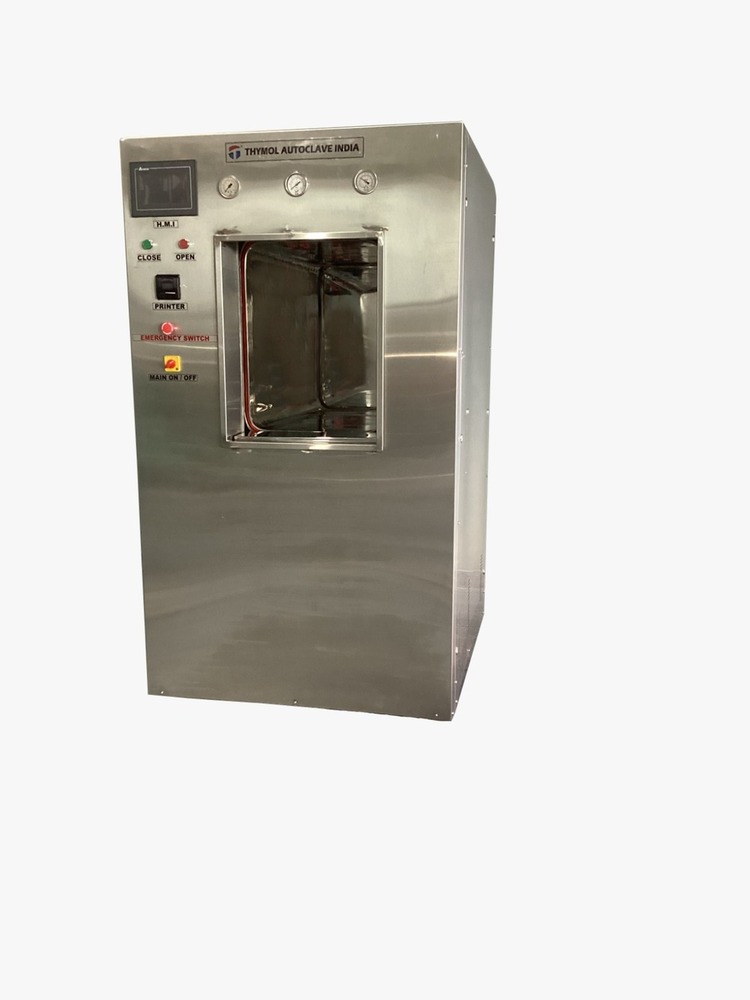

Sliding Door Autoclave
