Vertical Triple Walled Wingnut Autoclave
Vertical Triple Walled Wingnut Autoclave

Vertical Triple Walled Wingnut Autoclave

MOQ : 1 Unit

Vertical Triple Walled Wingnut Autoclave Specification

  • Type
  • Vertical triple-walled autoclave
  • Chamber Size
  • 350 mm x 550 mm, others on request
  • Chamber Thickness
  • 3.0 mm (minimum) stainless steel
  • Outer Size
  • 430 mm x 640 mm (Standard), Custom sizes available
  • Compressed Air
  • Not required, operates on electric and steam supply
  • Door Type
  • Radial lock, wingnut type lid
  • Design Pressure
  • 2.5 kg/cm2
  • Working Pressure
  • 1.2 kg/cm2 to 1.5 kg/cm2
  • Design Temperature
  • 134C max
  • Heat Uniform
  • 1C
  • Insulation
  • Triple walled with mineral wool insulation
  • Net Weight
  • ~90 kg (varies with size)
  • Recording Parameters
  • Digital display and manual record
  • Spraying Mode
  • Uniform spraying, 360 coverage
  • Outer Trolley
  • Optional stainless steel removable trolley
  • Inner Trolley
  • Perforated stainless steel basket included
  • Spraying Piping
  • Built-in stainless steel spraying jets
  • Steam
  • Electric steam generation
  • Sterilizing Temperature
  • 121C (Standard)
  • Working Temperature
  • 121C to 134C
  • Sterilization Time
  • 15-30 minutes (adjustable)
  • Temperature Scope
  • Ambient to 134C
  • Piping System
  • Stainless steel pipeline system with pressure gauge
  • Valves
  • Safety valve, release valve, steam trap
  • Power Consumption
  • 3 kW to 6 kW (model dependent)
  • Material of Construction
  • SS 304/SS 316 as required
  • Pressure Gauge
  • Bourdon type analog gauge
  • Finish
  • Mirror polished exterior and interior
  • Heating Element
  • ISI marked immersion heating elements
  • Safety Features
  • Automatic pressure cut-off, mechanical safety lock
  • Water Level Indicator
  • Fitted with glass tube water level indicator
  • Control System
  • Automatic pressure and temperature controls
  • Accessories
  • Tray, wire basket, detachable cord, operation manual
  • Drain Valve
  • SS ball valve for easy drainage
  • Power Supply
  • 220V/240V AC, 50 Hz single phase
  • Gasket
  • High-grade silicon rubber gasket


Vertical Triple Walled Wingnut Autoclave Trade Information

  • Minimum Order Quantity
  • 1 Unit
  • Supply Ability
  • 100 Units Per Month
  • Delivery Time
  • 5-7 Days


About Vertical Triple Walled Wingnut Autoclave



Get your hands on this hot-selling Vertical Triple Walled Wingnut Autoclave-an imposing sterilization marvel perfect for medical, laboratory, and industrial applications. Constructed from flawless SS 304/SS 316 as per requirements, it boasts a redoubtable triple-walled body packed with mineral wool insulation for unmatched thermal efficiency. Automatic pressure and temperature controls, ISI-marked immersion heating elements, and a mirror-polished finish add reliability and sophistication. Designed for safety with mechanical locks and advanced safety cut-offs, this autoclave offers uniform, comprehensive sterilization with robust accessories. It operates seamlessly on both electric and steam supplies.

Special Features and Use Type

The Vertical Triple Walled Wingnut Autoclave stands out with its uniform 360 spraying mode, robust stainless steel construction, and automatic controls. Its triple-walled insulation ensures heat retention and energy efficiency. The imposing wingnut radial lock lid adds security, and the high-grade silicon gasket guarantees flawless sealing. Ideal for high standards in hospitals, labs, and research centers, it accommodates diverse sterilization needs with adjustable temperature and sterilization time, making it a versatile asset for strict procedural environments.


Supply Ability, Pricing & Delivery

Our proposal amount is competitively set, optimizing your outlay against the list price for each Vertical Triple Walled Wingnut Autoclave unit. With a robust supply capacity supported by manufacturer, supplier, and distributor networks across India, we ensure prompt delivery times on standard and custom models. Flexible payment terms cater to business needs, making acquisition seamless. Standard delivery occurs within 2-4 weeks of order confirmation, with status updates provided throughout the process, guaranteeing reliability and client satisfaction.


FAQ's of Vertical Triple Walled Wingnut Autoclave:


Q: How does the triple-walled insulation enhance the autoclave's performance?

A: The triple-walled insulation, packed with mineral wool, significantly improves thermal efficiency, minimizes heat loss, and ensures consistent internal temperatures for optimal sterilization cycles.

Q: What is the benefit of the automatic pressure and temperature controls?

A: Automatic controls ensure precise regulation of pressure and temperature, contributing to safe operation, efficient sterilization, and reducing the need for constant manual monitoring.

Q: When should the water level indicator be checked during usage?

A: The glass tube water level indicator should be checked before each cycle and monitored during operation to ensure adequate water levels for safe, uninterrupted performance.

Q: Where can this autoclave be effectively utilized?

A: This autoclave is ideal for use in hospitals, research labs, pharmaceutical industries, and other institutions requiring stringent, reliable sterilization processes.

Q: What safety mechanisms are included in the design?

A: It features a mechanical safety lock, automatic pressure cut-off, high-grade silicon gasket, and Bourdon type analog pressure gauge, providing multiple layers of operational safety.

Q: How long is the standard sterilization time and is it adjustable?

A: The standard sterilization time ranges from 15 to 30 minutes, and it can be easily adjusted to meet specific operational requirements.

Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Vertical Autoclave Category

Vertical Cylindrical Triple Walled High Pressure Autoclave With Outer Square Body

Vertical Cylindrical Triple Walled High Pressure Autoclave With Outer Square Body

Minimum Order Quantity : 1 Unit

Power Consumption : 618 kW (depends on model size)

Working Pressure : 2.1 Bar (approx. 30 psi)

Outer Size : Customizable as per requirement

Chamber Size : Standard or customizable (e.g., 400x600 mm and above)

Working Temperature : 121C134C

Vertical Double Walled Wingnut Autoclave

Vertical Double Walled Wingnut Autoclave

Minimum Order Quantity : 1 Unit

Power Consumption : 1.5 kW

Working Pressure : 1520 PSI

Outer Size : 10 18 inches

Chamber Size : 250 450 mm

Working Temperature : 121125C

Vertical Triple Walled Radial Locking Autoclave Fully Stainless Steel

Vertical Triple Walled Radial Locking Autoclave Fully Stainless Steel

Minimum Order Quantity : 1 Unit

Power Consumption : 1.5 kW

Working Pressure : 1520 PSI

Outer Size : 10 18 inches

Chamber Size : 250 450 mm

Working Temperature : 121125C

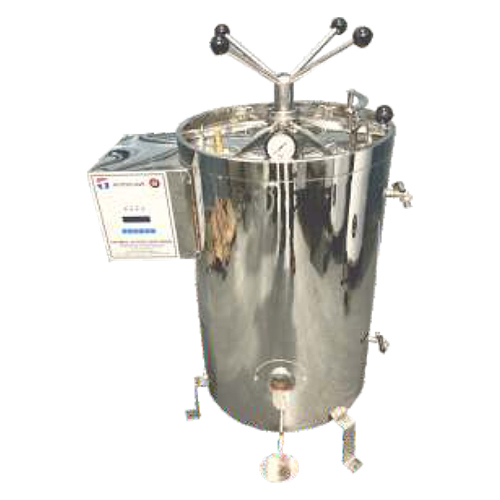

Vertical Double Walled Radial Locking Autoclave Fully Stainless Steel
