TAI-951(B) Dynamic Pass Box

Get a Price/Quote

Product Details:

Thickness 1.2 mm to 1.5 mm
Lighting Fluorescent lamp/LED
Condition New
Power Consumption 60 W to 120 W
Air Flow Horizontal / Vertical unidirectional
Filter Type HEPA Filter with 99.97% efficiency up to 0.3 micron
Dimension (L*W*H) 600 x 600 x 900 mm
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

TAI-951(B) Dynamic Pass Box Product Specifications

Filter Type HEPA Filter with 99.97% efficiency up to 0.3 micron
Dimension (L*W*H) 600 x 600 x 900 mm
Feature Microprocessor Control Panel, UV Light, Digital Display
Filters HEPA & Pre-filter
Thickness 1.2 mm to 1.5 mm
Lighting Fluorescent lamp/LED
Condition New
Power Consumption 60 W to 120 W
Air Flow Horizontal / Vertical unidirectional
Nozzle Stainless steel adjustable
Material Stainless Steel SS-304/316
Voltage 220V AC, 50 Hz
Floor Stainless steel with perforation
Application Transfer of items between cleanrooms
Weight Approx. 50-75 kg
Frame Material Stainless Steel
Type Dynamic Pass Box
Door Double door with electromagnetic interlocking
Air Volume 350 - 450 CFM

Operation Automatic and Manual mode
Pressure Gauge Analog / Digital display
Timer Digital timer for operation cycle
Finish Matt / Mirror (as per customer requirement)
UV Lamp 15W UV lamp for disinfection
Noise Level Less than 65 dB
View Panel Glass Acrylic window on both doors
Control System Microprocessor-based
Sealing EPDM gasketing for leak-proof sealing

Product Description

Reserve the TAI-951(B) Dynamic Pass Box - a virtuosic, must-have solution for ultra-clean environments. With a dominant presence in cleanroom applications, this grand pass box features both analog and digital pressure gauges and versatile operation modes-automatic or manual. Equipped with a powerful 15W UV lamp, robust HEPA filtration (99.97% efficiency up to 0.3 micron), and user-centric controls via a microprocessor panel, it guarantees flawless item transfer. Pick yours with a customized mirror or matt finish, and experience elite protection with EPDM gasketing and electromagnetic interlocking doors. Ideal for distributors, exporters, manufacturers, and more.

Primary Advantages, Applications & Commercial Use

The TAI-951(B) Dynamic Pass Box distinguishes itself through ultimate sealing, advanced HEPA filtration, and flexible microprocessor controls. Designed for seamless item transfer between cleanrooms, it's essential in pharmaceutical, biotech, laboratory, and electronics industries. With durable stainless steel build and EMPDM seals, it ensures superior contamination control, vital for high-stakes commercial operations. Exporters, manufacturers, and suppliers benefit from its grand versatility, while its easy integration into existing cleanroom infrastructure sets it apart as an industry favorite.

Payment Terms, Export Markets & Delivery

Enjoy flexible outlay options and competitive drop-off schedules when you acquire the TAI-951(B). Designed with leading markets across India and worldwide in mind, this pass box offers efficient freight solutions and reliable delivery times. With an established export network spanning diverse industrial sectors, we guarantee swift order drop-off within agreed lead times, ensuring your critical processes remain uninterrupted. Secure your procurement with confidence and experience our grand commitment to fulfilling your commercial needs.

FAQ's of TAI-951(B) Dynamic Pass Box:

Q: How does the TAI-951(B) Dynamic Pass Box enhance cleanroom transfer operations?

A: The TAI-951(B) ensures safe and contamination-free transfer of items between cleanrooms, thanks to its HEPA filtration, UV disinfection, and precise electromagnetic door locking.

Q: What are the available operation modes for this pass box?

A: You can use both automatic and manual operation modes, offering flexibility based on your process requirements.

Q: Where is the TAI-951(B) ideally applied?

A: This dynamic pass box is best suited for pharmaceutical manufacturing, biotech labs, electronics production, and any setting requiring stringent hygiene and contamination control.

Q: What competitive advantages does this product offer over standard pass boxes?

A: It offers advanced features like a microprocessor control panel, customizable finishes, superior leak-proof sealing, UV disinfection, and both analog and digital pressure gauges, making it stand out in the market.

Q: How does the payment and delivery process work for international customers?

A: International customers can benefit from flexible payment terms, reliable freight solutions, and timely drop-off, ensuring efficient procurement and delivery worldwide.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Clean Room Equipments' category

TAI-957 Fume Hood Door : Vertical sliding sash (toughened glass) Type : Other , Ducted Fume Hood Frame Material : Other, Mild Steel Weight : Approx 140 kg Floor : Acid/alkali resistant worktop Application : Laboratory chemical fume extraction Voltage : 220240 V AC, 50 Hz Material : Other, Mild steel (powder coated) / Stainless steel (optional) Air Flow : 0.50.7 m/s Power Consumption : 230250 W Condition : Other, New Lighting : LED/CFL internal illumination Thickness : 1.2 mm to 1.5 mm powder coated sheet Filters : Pre and activated carbon (optional) Feature : Digital control panel, chemical resistance, low noise, internal sockets Dimension (L*W*H) : 1200 x 800 x 2300 mm (customizable) Air Volume : 8001200 m3/h Filter Type : Other, HEPA/Carbon (optional) Nozzle : Utility nozzles for water/gas/vacuum

Send Inquiry

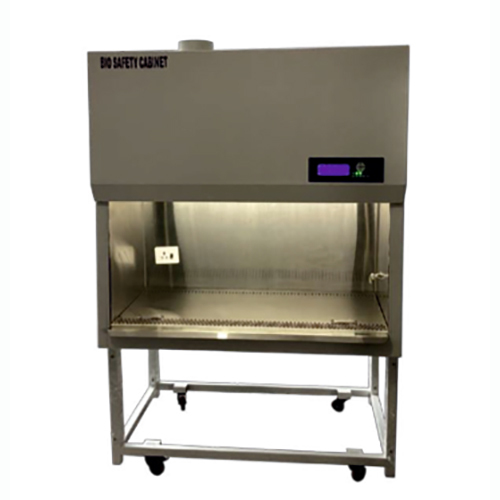

TAI-952(A) Biosafety Cabinet Door : Front Sliding Sash, Toughened Glass Type : Other , Class II Biosafety Cabinet Frame Material : Other, Sturdy Stainless Steel Frame Weight : Approx. 125 kg Floor : Stainless Steel Removable Work Tray Application : Microbiological work, Laboratory, Pharmaceutical, Research Institutes Voltage : 220V / 50Hz Material : Other, Stainless Steel (Main Chamber) Air Flow : Vertical Laminar Airflow Power Consumption : 500W 750W Condition : Other, New Lighting : UV Germicidal Lamp and Fluorescent Light Thickness : 1.2 mm (approx. stainless steel sheet) Filters : HEPA Filter & Pre Filter System Feature : Digital Display, Low Vibration, Automatic Timer, Castor Wheels for Mobility Dimension (L*W*H) : 1200 x 600 x 1800 mm (standard size, customizable options available) Air Volume : 360 m3/h Filter Type : Other, HEPA (Efficiency 99.97% at 0.3 micron), Pre Filter Nozzle : Integrated gas and vacuum nozzles
